Sol-Arc 15K

  • Sale
  • Regular price $9,515.00
Shipping calculated at checkout.

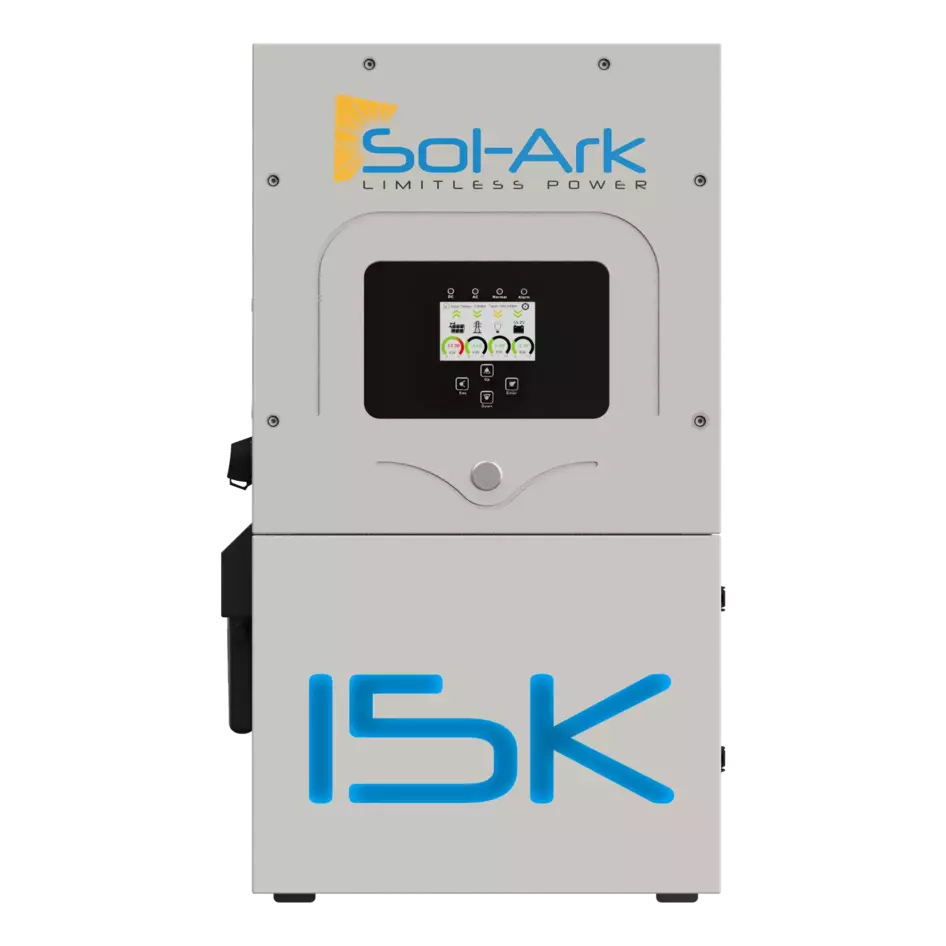

Sol-Ark 15K Pre-Wired Hybrid Inverter System is a all-in-one system that includes an inverter, charger controller, a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or Battery Backup solar system, while being able to manage power to and from Solar, Battery, Grid, Loads, and Generator.

SA-15K Features:

  • Simple to install with touchscreen interface
  • Grid Tied Mode: Sell your power to reduce electric bill
  • Meter Zero Mode: Zero your electric bill without a smart meter
  • Time of Use: Use solar and batteries to minimize grid power usage
  • Programmable Smart Load Mode
  • DC and AC Coupling
  • Works with a wide range of battery chemistries- Lead acid to Lithium

SA-15K Specifications:

  • AC Voltage: 120/240V split phase
  • AC Frequency: 60/50 Hz
  • Max Continuous AC Output Power:16,000W
  • MPPT Voltage Range: 125-425V
  • Max Input Current: 26Amp (per mppt)
  • Inverter Efficiency: 96.0%
  • Listings & Certifications:UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 class B
  • Weight: 85. lbs
  • Dimensions (H x W x D): 31.8" x 18.30" x 10.9"

10 Year Standard Warranty
