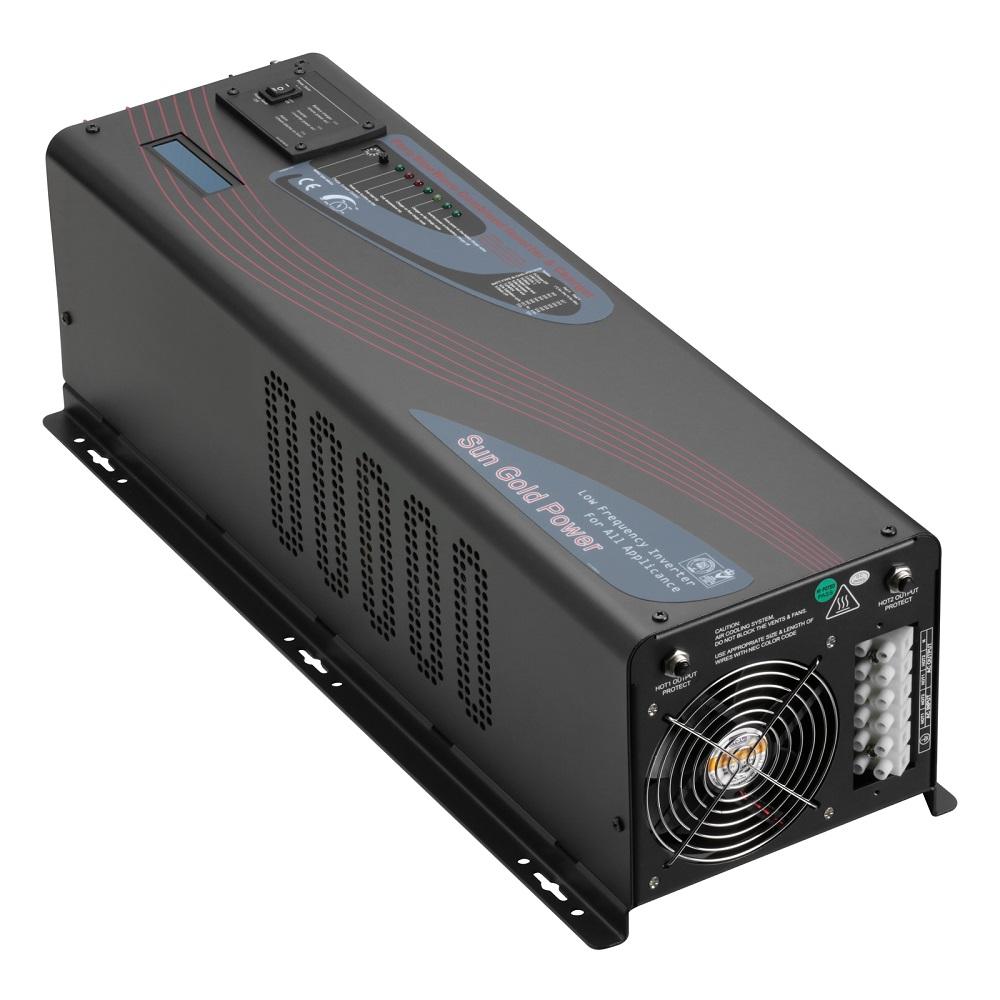

This LFP Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch. low frequency, low Idle Current, BTS cable, remote control.
- The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.
-
AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
-
Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.
-
Auto Gen Start: The inverter can start up a generator when battery voltage goes low. and turn the generator off after battery charging is finished.
Main Features:
*6000W Low Frequency Pure Sine Inverter With Charger.
*AC/Battery Priority Selector.
*Automatic Generator Start.
*Safety and Convenient.
*The low frequency inverter can power all kinds of appliances.
*LCD Display, Remote Control.
*Low Idle Consumption.
*9 battery type settings for charger.
*Multi Stage Smart charger 90+/-5A, charger can be disable.
*10msec typical transfer time.
Inverter Output:
*Continuous Output Power: 6000W
*Surge Rating: 18000W (20 Seconds)
*AC Output: AC 120V and AC 240V
*AC Input: 240V
*Output Wave: Pure Sine Wave (bypass mode)
*Typical Transfer Time: 10ms (MAX)
*Nominal Efficiency: >88%
DC Input:
*Nominal Input Voltage: 24.0Vdc
*Minimum Start Voltage: 20.0Vdc
*Low Battery Alarm: 21.0Vdc-22.0Vdc
*Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
*High Voltage Alarm: 32.0Vdc
*Low battery Voltage Restart: 26Vdc
*Idle Consumption: 77W
*Power Saver Mode Idle Consumption: 29W
AC Charger :
*Charger Rate: 90+/-5A
*AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2)
*Over Charge Protection Shutdown: 31.4V
*Selectable Charge Setting based on battery type
*Adjustable charge current: off 0%-100%
*3-step intelligent battery charger
Packaging:
*6000W 24V Low Frequency Pure Sine Inverter
*English Manual
*Remote Control
*BTS Cable
*Unit Weight: 76.7LB
*Unit Size: 25.6 x 9.1 x 7.5 inch
*Shipping Weight: 85.5LB
*Shipping Size: 30.3 x 13.4 x 12.8 inch
