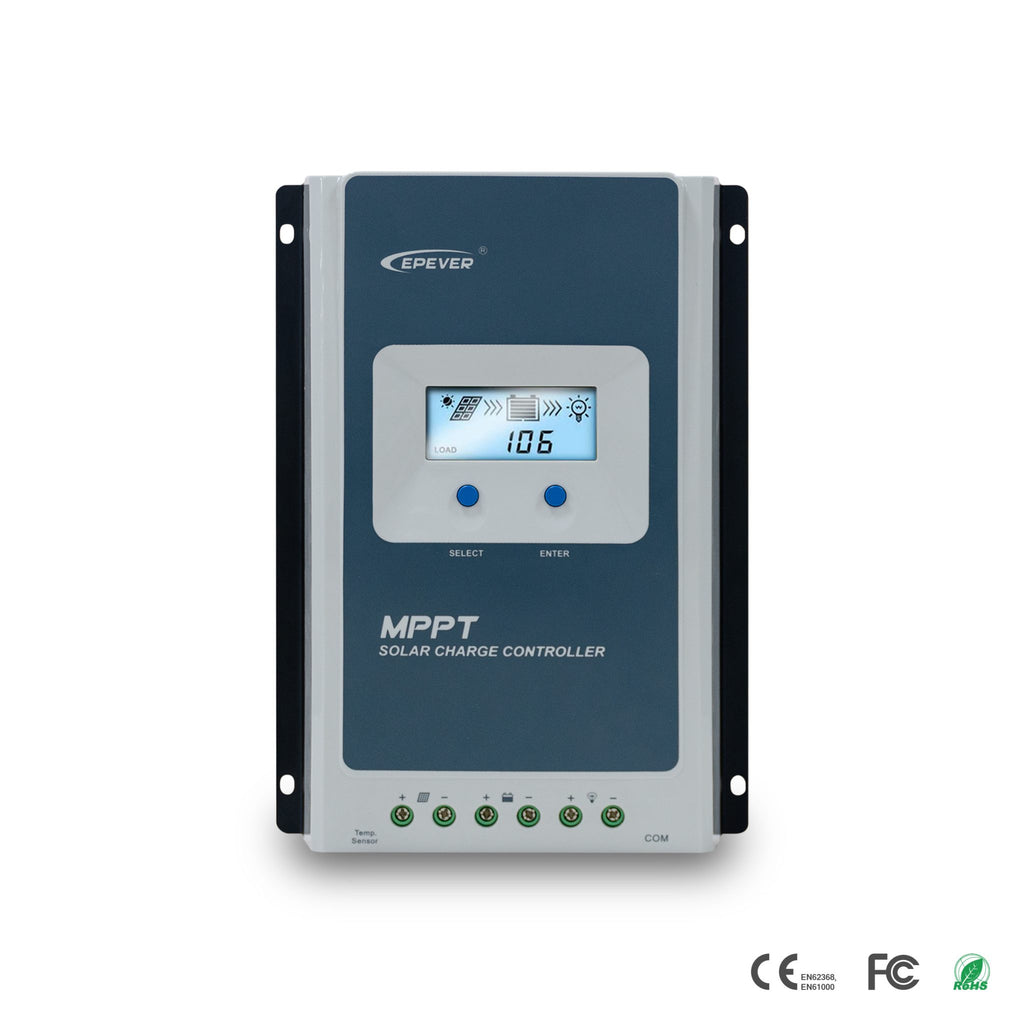

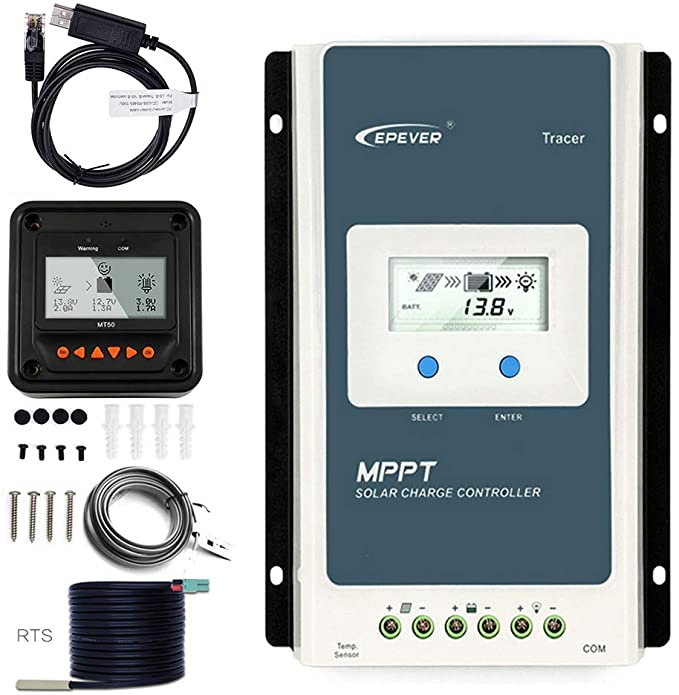

Tracer-AN 40A charge controller adopts MPPT(Maximum Power Point Tracking)technology. In any situation, it can track the maximum power point (MPP) of the solar array and obtain the maximum solar energy rapidly and accurately. It can generate up to 30% more power compared with the PWM charge controller. This series can accept max.100V Voc and work with the solar panels which are designed for on-grid applications. The multi-functional LCD displays the system status vividly.
Model | Tracer1206AN | Tracer2206AN | Tracer1210AN | Tracer2210AN | Tracer3210AN | Tracer4210AN |
Nominal system voltage | 12/24VDC/Auto | |||||
Battery type | Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User | |||||
Battery input voltage range | 8~32V | |||||
Rated charge current | 10A | 20A | 10A | 20A | 30A | 40A |
Rated discharge current | 10A | 20A | 10A | 20A | 30A | 40A |
Rated charge power | 130W/12V 260W/24V | 260W/12V 520W/24V | 130W/12V 260W/24V | 260W/12V 520W/24V | 390W/12V 780W/24V | 520W/12V 1040W/24V |
Max. conversion efficiency | ≤98.0% | |||||
Tracking efficiency | ≥99.5% | |||||
Max. PV open circuit voltage | 60V(At minimum operating environment temperature); 46V(At 25℃ environment temperature) |
100V(At minimum operating environment temperature); 92V(At 25℃ environment temperature) |
||||
MPP voltage range | (Battery voltage +2V)~36V | (Battery voltage +2V)~72V | ||||
Equalization voltage | Sealed:14.6V,Flooded:14.8V,User-defined:9-17V | |||||
Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V | |||||
Float voltage | Gel/Sealed/Flooded:13.8V,User-defined:9-17V | |||||
Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V,User-defined:9-17V | |||||
Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V,User-defined:9-17V | |||||
Self-consumption | ≤12mA | |||||
Temperature compensation( for lead-acid battery) | -3mV/℃/2V (Default) | |||||
Relative humidity | ≤95%, N.C. | |||||
Enclosure | IP30 | |||||
Communication interface | RS485(RJ45) | |||||
Grounding | Common negative | |||||
Operating temperature range | -25℃~+45℃(100% input and output) | |||||
Dimensions(LxWxH)(mm) | 172×139×44 | 220×154×52 | 172×139×44 | 220×154×52 | 228×164×55 | 252×180×63 |
Net weight | 0.57kg | 0.94kg | 0.57kg | 0.94kg | 1.26kg | 1.65kg |
1. The controller can't automatically identify system voltage if lithium batteries were connected. | ||||||
