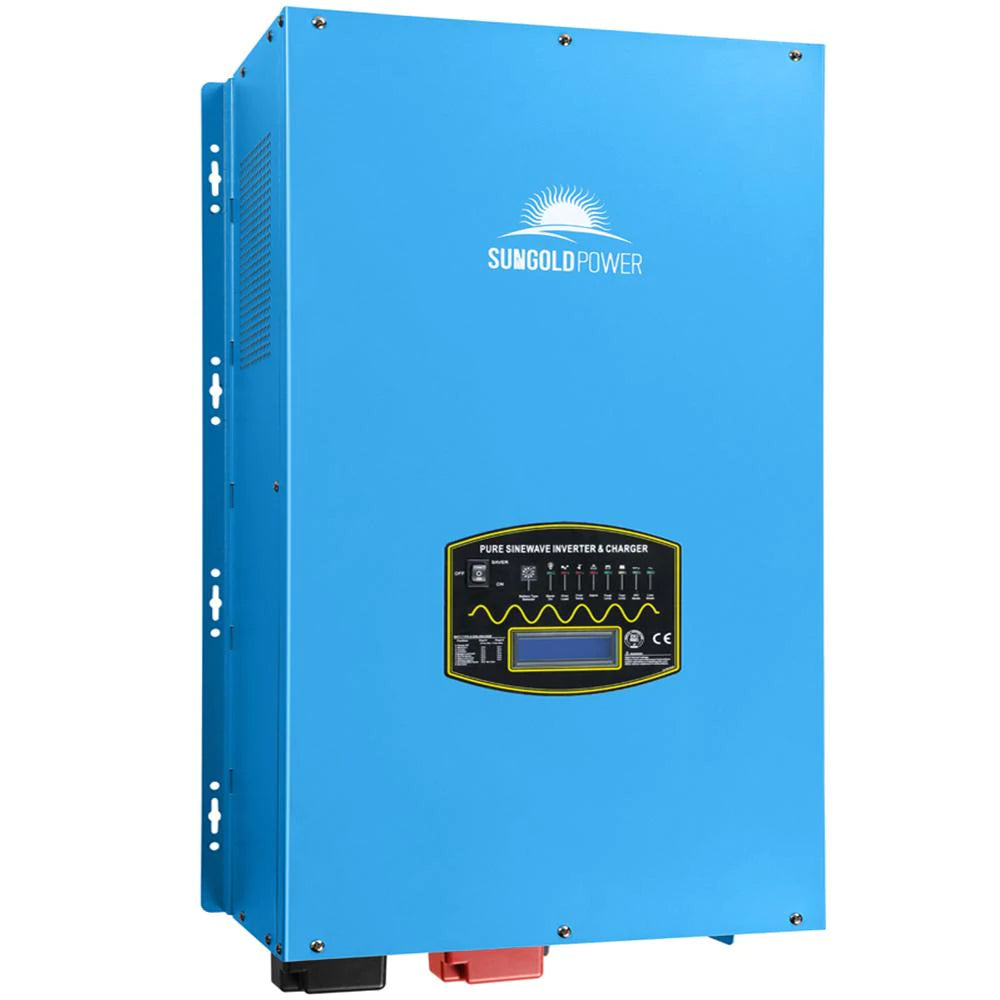

12,000 Watt Pure Sign Inverter

  • Sale
  • Regular price $4,950.00
Shipping calculated at checkout.

  • LF-PV Series Pure Sine Wave Inverter is a combination of an inverter, AC charger, Mppt solar charger and Auto-transfer switch into one complete system.
  • The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.
  • AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
  • Features: Smart Remote Control, Automatic Generator Starting (AGS), Support Solar Panel with MPPT Function, Suitable for different kinds of batteries.
  • Application: for all the kinds of load: refrigerators, freezers, microwaves, dryers, air conditioners, pumps and all the big home and business applications.


Main Features:
*12KW split phase pure sine inverter charger DC 48V AC 240V input AC output 120V/240V
*Auto Generator Start (AGS)
*Support Solar Panel with MPPT Function
*Include Battery Temperature Sensor (BTS) and Remote Control
*8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM and lead Acid batteries)
*Compatible With All kind of Home & Office Appliances
*Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%
*Built-in transfer switch and battery charge, backup or off grid power solutions
*AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
*4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
*8 ms Typical Transfer Time Between Utility & Battery,Ensure Power Continuity
*15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator

Main Specification:
Continuous Output Power: 12.0KW
Surge Rating(20s): 36.0KW
Output Waveform: Pure Sine Wave
AC Output Voltage: 120V and 240V
AC Input Voltage: 240V ( not suitable for AC 120V input )
DC Battery Voltage: 48Vdc
Solar charger Current: 60Amp
AC Battery charger: 120±5Amp
Output Frequency: 50Hz /60Hz
Typical transfer Time: 10ms(Max)

DC Input:
Nominal Input Voltage: 48.0Vdc
Minimum Start Voltage: 40.0Vdc/ 42.0Vdc
Low Battery Alarm: 42.0Vdc / 44.0Vdc
Low Battery Trip: 40.0Vdc / 42.0Vdc
High Voltage Alarm: 64.0Vdc
Low Battery voltage recover: 62.0Vdc
Power Saver on Idle Consumption: 40W
Power Saver off Idle Power: 180W

Charger :
Output Voltage: Depends on battery type
Battery Initial Voltage for Start Up: 40-62.8V
Over Charge Protection Shutdown: 62.8V
Charger Breaker: 80A
Input Voltage Waveform: Sine wave (Grid or Generator)
AC input range:184-253Vac/140-270Vac
Nominal Input Frequency :50Hz or 60Hz (Auto detect)

Solar Charger controller: (you can disable our solar controller, and connect with external solar controller)
Solar Input Voltage Range: 60-145Vdc
Max.PV Open Circuit Array Voltage: 145Vdc
Rated Charge Current: 80A
Over Charge Disconnection: 59.2V
Over Charge Recovery: 54.4V
Over Discharge Disconnection: 43.2 V
Over Discharge Reconnection: 49.6V

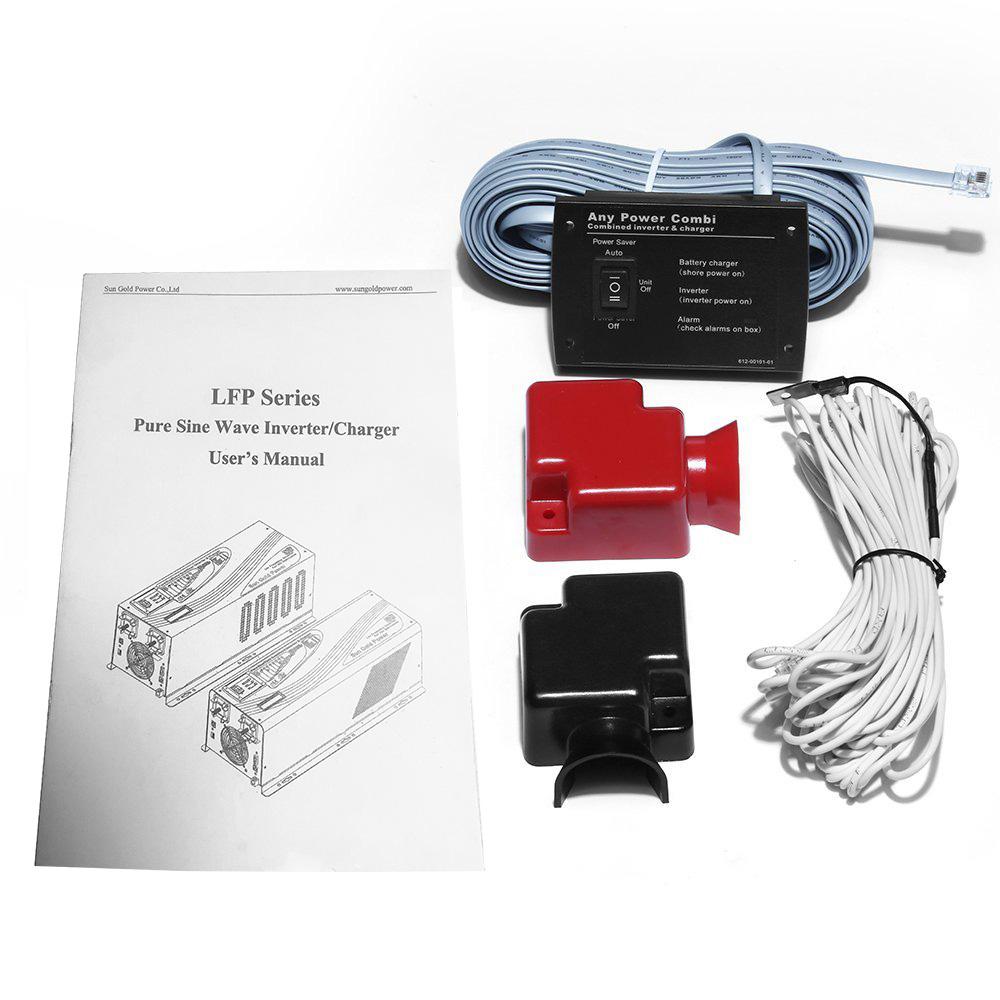

*12000W 48V Split Phase Pure Sine Wave Solar Power Inverter
*English Manual
*Remote Control
*BTS Cable
*Unit Weight: 160 LB
*Unit Size: 27.6 x 16.5 x 8 inch
*Shipping Weight: 196 LB
*Shipping Size: 33 x 21 x 16 inch
